Vertical Coupling Assembly Series

Passive product lines,conventional and specialised,fibre arrays and coupled optical devices are now in mass production.


Description：

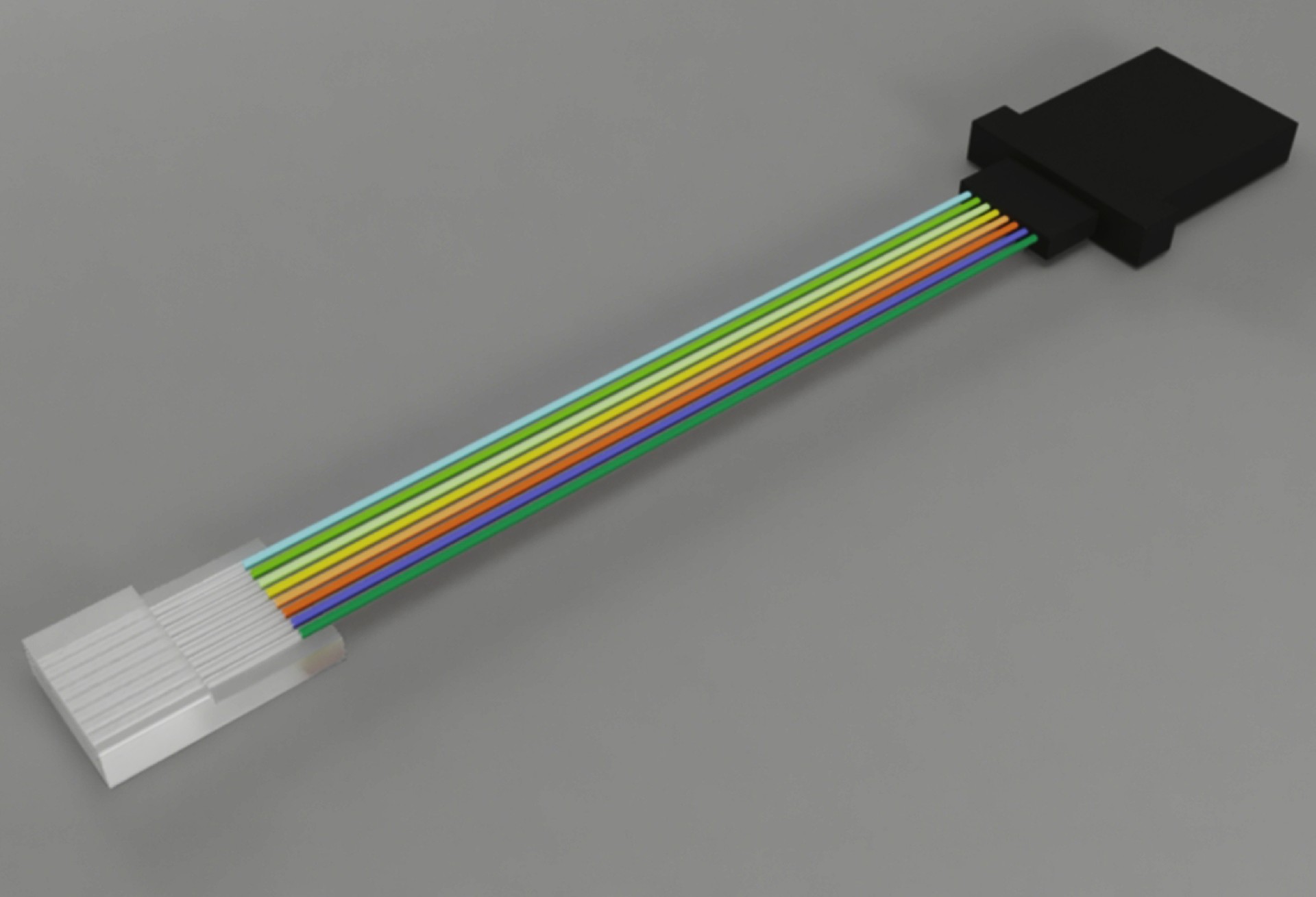

The Vertical Coupling Assembly Series employs a 90° vertical coupling scheme. By grinding the FA to a 45° or 42.5° total internal reflection angle, it enables direct coupling between the RX reception end and the PD, facilitating optoelectronic conversion of the optical signal. The small volume and multiple channels of the MT  ferrule are utilized to achieve parallel transmission of multiple optical signals. This technology is currently widely used for internal connections in high-speed optical modules.







Parameter：


 Angle of FA

0, 8

°

Angle of MT

Customized

°

Channels

1CH、2CH...Customized

CH

Spacing

127、250、Customized

μm

Connector Type

Customized

-

Insertion loss

≤2

dB

Polarisation Extinction

≥25

dB

Angle of Cat's Eye

≤2

°

Angle of polarisation

≤3

°
