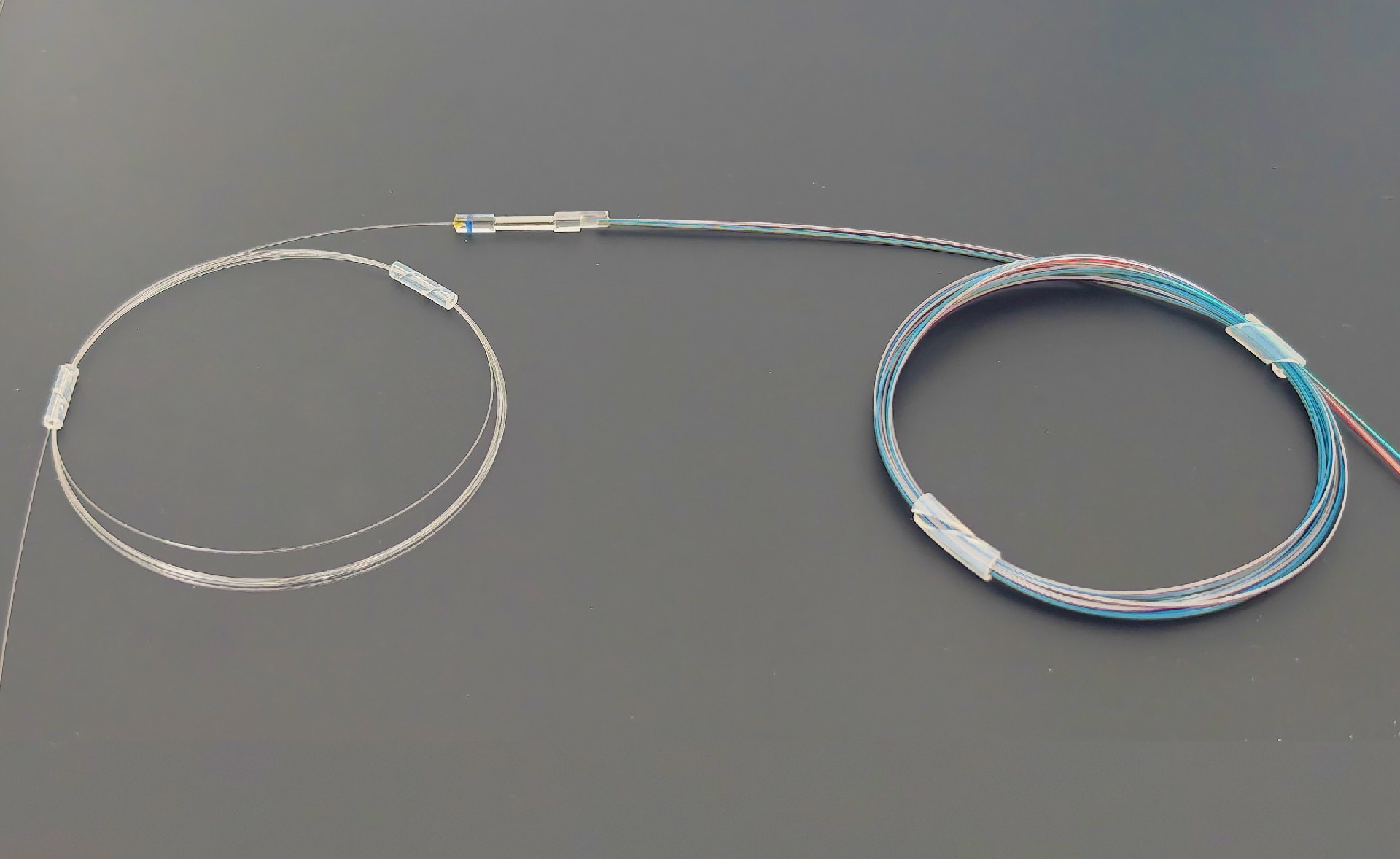

Fiber array (FA)

FA-MT, MT-MT, MPO-FC, FC-FC Optical Connectivity Assemblies, PM-FA, MFD-FA, and Custom Passive Optical Products.


Description

Fiber array (FA) is an array formed by using V-groove substrate to install a bundle of optical fibers or an optical fiber band on the substrate at specified intervals. Optical fiber array mainly includes substrate, pressing plate and optical fiber. The V-groove needs to use a special cutting process to achieve accurate optical fiber positioning. The exposed optical fiber part without optical fiber coating is placed in the V-groove, pressurized by the pressurizer component and fixed with adhesive, and the end face is optically ground to finally form an optical fiber array.



Feature

  • High-precision

  • High reliability

  • Small size

Application

  • Planar optical waveguide

  • Arrayed waveguide grating

  • Active / passive array optical fiber devices

  • MEMS

  • Multichannel optical module

Spec

  • 2 to 64 channels


Parameter

ItemParameter index
Channels248163264Customized
Detail size specDetail specDetail specDetail specDetail specDetail specDetail spec
Core spacing（μm）127, 250 or Customized
Grinding end face（°）82 ± 0.2 or Customized
Fiber typeG657A1、G657A2、muilt mode or Customized
Optical fiber length（m）0.7m、1.2m、2.0m or Customized

Limit size and length of FA customized array substrate:

Length: 3mm Width: 1.5mm Thickness: 1mm
