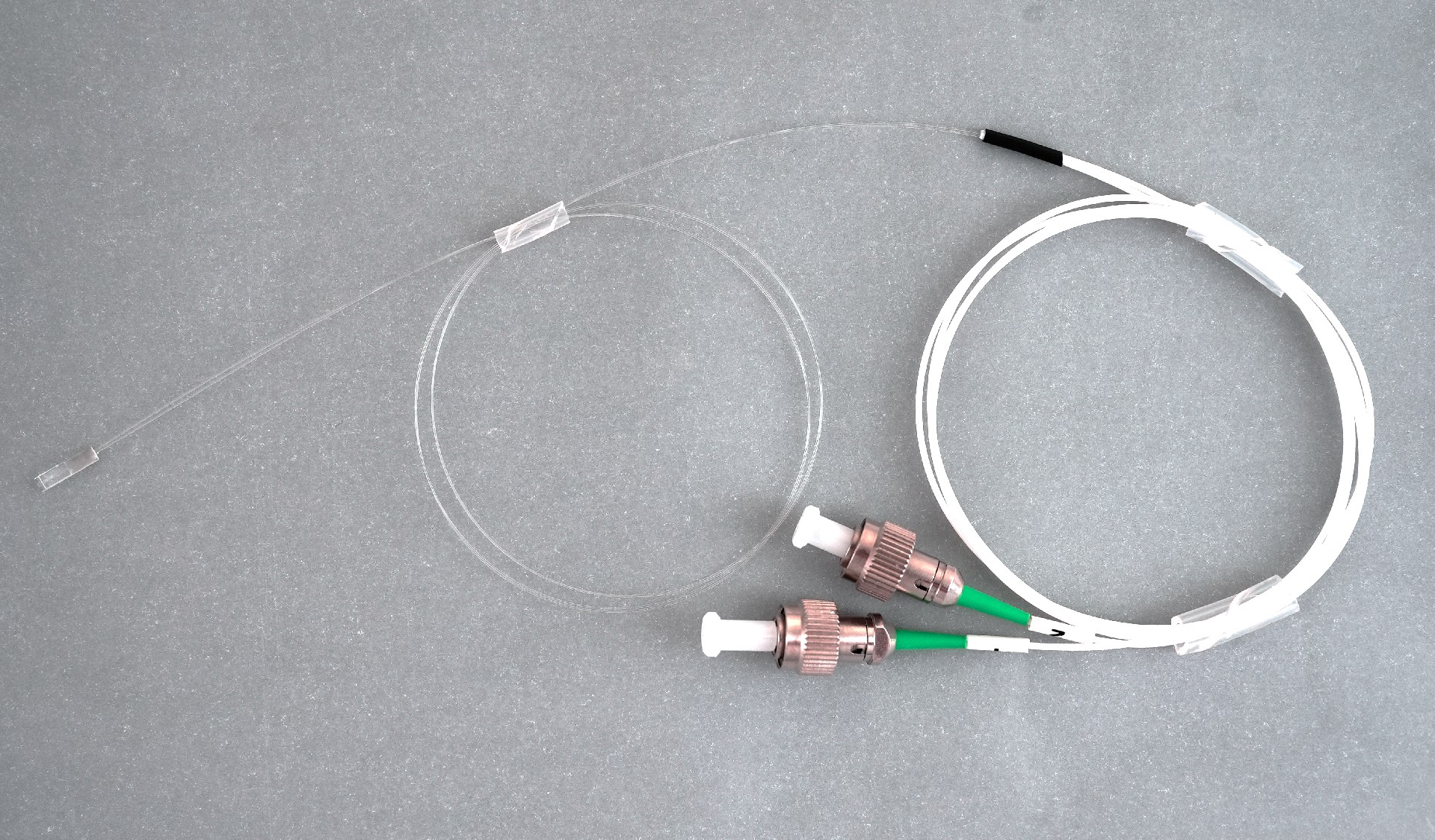

Mode Field Diameterconversion Fiber Array (MFD-FA)
Passive product lines,conventional and specialised,fibre arrays and coupled optical devices are now in mass production.
Description
The Mode Field Diameter Fiber Array (MFD-FA) provides a low-loss coupling method to waveguides with smaller mode fields. It utilizes ultra-high numerical aperture (NA) fibers and a fusion splicing technique with standard aperture fibers to achieve mode field conversion. This product is an ideal solution for high-speed silicon photonics transceiver modules.
Feature
Low insertion loss
High Pitch-core
Application
Integrated photonic transceiver module
Spec
4 to 64 channels
Mode field conversion fiber array parameters
Parameter
| Channels | 1CH, 2CH, Customized | CH |
| Channel spacing | 127, 250, Customized | um |
| Mode Field Diameter | 3, 3.5, 4, 5, 6 | um |
| Length of FA | ≥2 | mm |
| Angle of Cat's Eye | ≤2 | ° |
| Angle of polarisation | ≤3.5 | ° |
| Insertion Loss of MT | ≤3.5 | dB |
| ER | ≥20 | dB |
